- Suitable for virtually every bathroom
- No moving parts or electronics
- Low maintenance
- For new build and renovation
Sanura X-Tray 90-90
This horizontal waste water heat recovery system is made from ABS and has a copper tubular heat exchanger. This innovative and durable design delivers an efficiency of 48,7% at 5,8 L/Min.
Size & Specifications
Length
898 mm
Width
898 mm
Min. installation height
75 mm
Height
125 – 75 mm
Maximal load
200 kg
Advice max temperture
60°C
Max capacity potable water
15 l/min
Max capacity waste water
36 l/min
Material & Certification
Max Pressure potable water side
7 bar
Outer shell
ABS
Heat exchanger
Copper
KIWA Certified
Yes
BCGR Certified
Yes
Warranty
5 years
Product number
421009
This horizontal waste water heat recovery system is made from durable ABS outer shell and a copper tubular heat exchanger. This smart en durable design delivers an efficiency of 48,7% at 5,8 L/Min making it the most reliable solution for every bathroom
- Suitable for every multifloor building
- No moving parts or electronics
- Maintance free and long lasting impact
- For newly build and renovation
Size & Specifications
Length
898 mm
Width
898 mm
Min. installation height
75 mm
Height
125 – 75 mm
Maximal load
200 kg
Advice max temperture
60°C
Max capacity potable water
15 l/min
Max capacity waste water
36 l/min
Material & Certification
Max Pressure potable water side
7 bar
Outer shell
ABS
Heat exchanger
Double walled red copper
KIWA Certified
Yes
BCGR Certified
Yes
Warranty
5 years
Product number
421009
How it works
When you shower, valuable energy disappears down the drain. A Recoup waste water heat recovery system captures that heat from the used water and transfers it to the incoming cold domestic water. This reduces the hotwater demand and reduces the load on the water heater, saving both energy and costs.
- Up to 65% heat recovery
- Lower hot water consumption
- Reduce CO₂ emissions while keeping full comfort

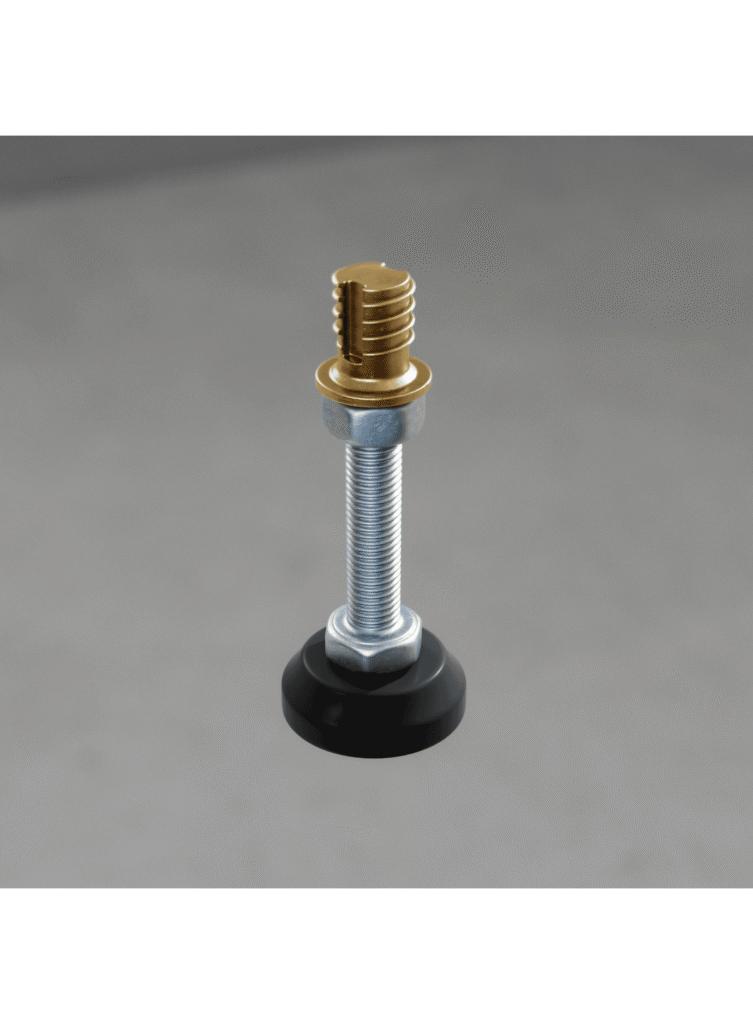

Add-ons
Discover Recoup add-ons: practical accessoiries that simplify installation and guarantee optimal system performance.
Request support
Our technical and sales team is available to answer any questions you may have and provide advice on products and installations
Frequently Asked Questions
What is the difference between a vertical and a horizontal heat exchanger?
The main difference is that a vertical heatexchanger needs to be installed one floor below the bathroom and a horizontal solution can be installed directly on or in the bathroom floor.
Can the X-tray be installed in any building?
The X-tray can be installed in virtually any bathroom. Depending on the situation, the X-Tray can be fully integrated into the bathroom floor (Repeat), it can be half-integrated, leaving a 25mm threshold or install it as a traditional shower tray.
Is the X-tray truly sustainable?
Absolutely. With the X-tray, you save a lot of energy and therefore reduce CO₂ emissions. An independent environmental study, commissioned by the Dutch government’s energy and sustainability agency, assessed the full environmental impact of the X-tray — including raw materials, production, transport, installation, use, and recycling. The results show that even in single-person households, the X-tray has a positive environmental effect. In multi-person households, where more showers are taken, the X-tray provides a significant environmental benefit.
Do I need a specialist to install the X-tray?
Contact your local installer for ordering and installing the X-tray. Proper installation ensures maximum efficiency and keeps your 5-year warranty valid.
Does the X-tray recycle wastewater?
No, only the heat from the wastewater is recovered, not the water itself.
Do I need to maintain the X-tray?
Apart from regular cleaning, the X-tray requires no extra maintenance.
How do I clean the X-tray?
The top of the X-tray can be cleaned just like any standard shower tray. Since water also flows through the inside, it should be cleaned internally from time to time as well. Using a hand shower and a sponge, you can easily clean the inside. The drain is part of the X-tray and is easy to access.
Is there a risk of clogging?
Just like any other shower tray or drain, there is always a chance of clogging as a result from hair, soap, dirt etc. The X-Tray has a hairfilter and a syphon that need to be cleaned regularly.
Is there any powersource needed for the X-tray?
The X-Tray is fully passive, has no moving parts and needs no power.
Can I connect the X-tray to both the water heater and the shower mixer?
Yes, the X-tray model can be connected in three different ways:
A. To both the water heater and the shower mixer (for maximum efficiency)*
B. To the shower mixer only
C. To the water heater only*
It might be challenging to connect the X-Tray to the water heater. The X-Tray is located in the bathroom, from there, an extra tube would need to be installed leading to the water heater. For more information, please contact us.
