This vertical wastewater heat recovery system is constructed with a PVC-U outer tube and a double-walled copper inner tube. This innovative design delivers an efficiency of 60% at 9,2 L/Min.
Size & Specifications
Length
1700 mm
Diameter
65,6 mm
Min. installation height
1800 mm
Weight
7,4 KG
Max. temperature
40°C
Max. portable water capacity
15 l/min
Max. waste water capacity
30 l/min
Max. pressure (water side)
10 bar (PN10)
Material & Certification
Outer shell
PVC
Heat exchanger
Double walled red copper
KIWA Certified
Yes
Passivhaus Certified
Yes
BCGR Certified
Yes
Warranty
10 years
Product number
708242
This vertical waste water heat recovery system is made with a PVC outer shell and a copper inner tube. This pattented design delivers an efficiency of 65,2% at 9,2 L/Min making it the most efficient product available.
Size & Specifications
Length
2100 mm
Diameter
2100 mm
Min. installation height
2100 mm
Weight
2100 mm
Max. temperature
2100 mm
Max. portable water capacity
2100 mm
Max. waste water capacity
2100 mm
Max. pressure (water side)
2100 mm
Material & Certification
Outer shell
PVC
Heat exchanger
2100 mm
KIWA Certified
2100 mm
Passivhaus Certified
2100 mm
BCGR Certified
2100 mm
Warranty
2100 mm
Product number
2100 mm
When you shower, valuable energy disappears down the drain. A Recoup waste water heat recovery system captures that heat from the used water and transfers it to the incoming cold domestic water. This reduces the hotwater demand and reduces the load on the water heater, saving both energy and costs.

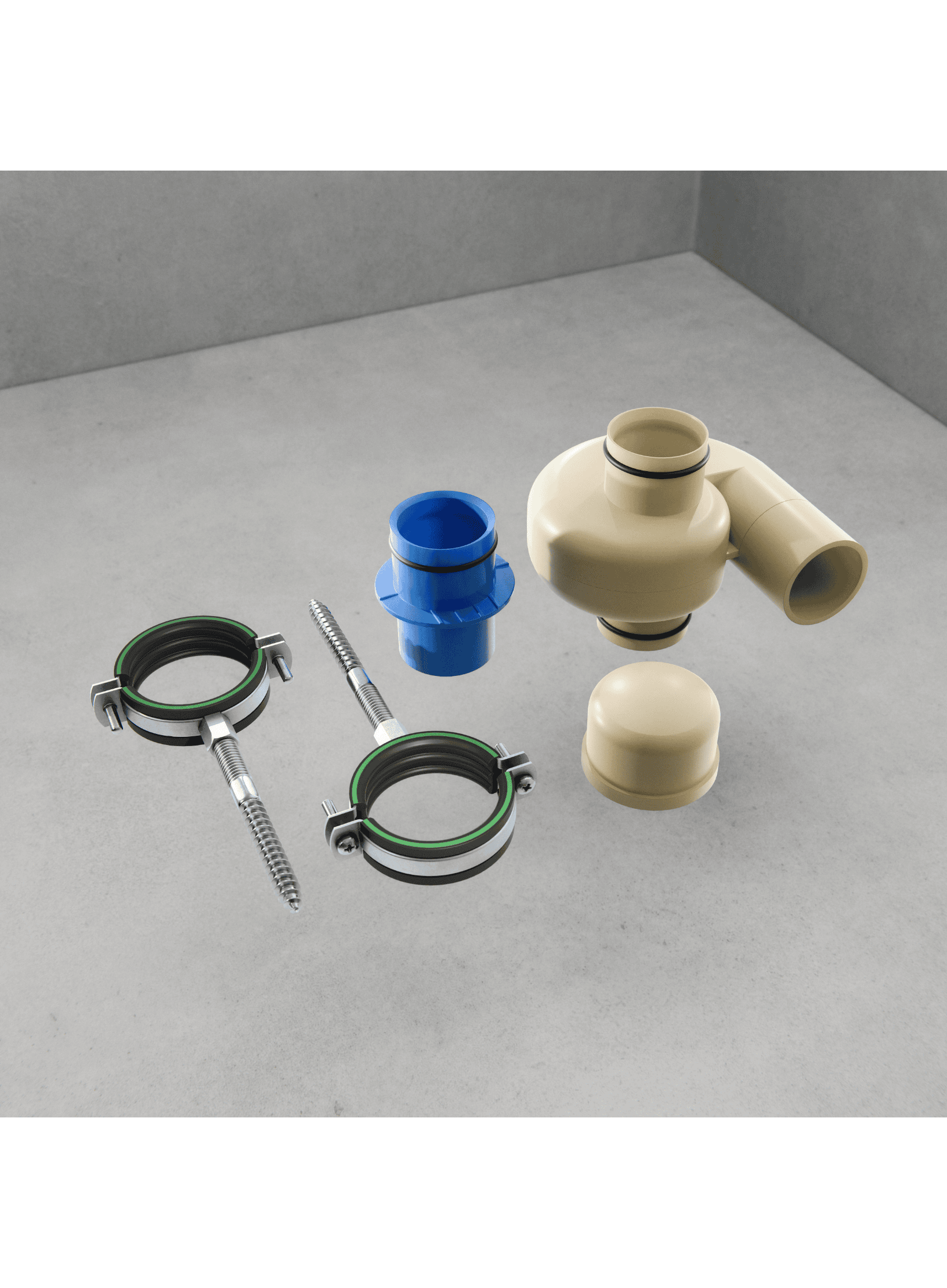

Discover Recoup add-ons: practical accessoiries that simplify installation and guarantee optimal system performance.
Discover Recoup add-ons: practical accessoiries that simplify installation and guarantee optimal system performance.
Our technical and sales team is available to answer any questions you may have and provide advice on products and installations
The VX 1700 is shorter than the VX 2100 (1,70m vs. 2,10m) When there is less space available, the VX 1700 is the ideal choice.
The VX 1700 is suitable for installation one floor below the bathroom. Depending on local rules and regulations, in high-rise buildings, it is often not allowed to install anything outside of the building envelope. In those situations, our horizontal WWHR systems are a suitable alternative.
We recommend to use a qualified installer to install the VX 1700. Proper installation ensures maximum efficiency.
Just as any other drainage system, clogging as a result of hair, soap and other particles, is a risk. We therefore recommend using a hair filter. From normal opertation, a showertube WWHR does not have an increased risk of clogging.
No periodic maintenance is needed for the VX 1700 due to it’s design and self-cleaning capabilities. Once installed the VX 1700 can operate many years without service or maintenance.
With a Recoup showerpipe, any type, the hot water buffer size can be reduced by up to 40%. An instantaneous water heater or any other type will experience a considerable lower load and will use less energy in increase its lifespan.
There are no restrictions on water heater types, the function of the showerpipe WWHR will remain unchanged and equally beneficial for reducing energy consumption.
The system requires no auxiliary power.
All Recoup WWHR systems comply with all relevant European standards regarding health and safety.
Yes, the VX 1700 can be connected in three ways:
A. Connection to water heater and shower mixer (maximum efficiency)
B. connection to the shower mixer only
C. Connection to the water heater only
